Harmar Home Access • Vertical Platform Lifts

Rise Above Stairs. Stay in Your Mobility Device.

Heavy-duty vertical platform lifts for wheelchairs, powerchairs and mobility scooters—designed for porches, decks, garages, entrances and travel between levels.

Call for a Free Evaluation Compare Harmar VPLs

Residential & Commercial Solutions • Indoor & Outdoor • Local Installation

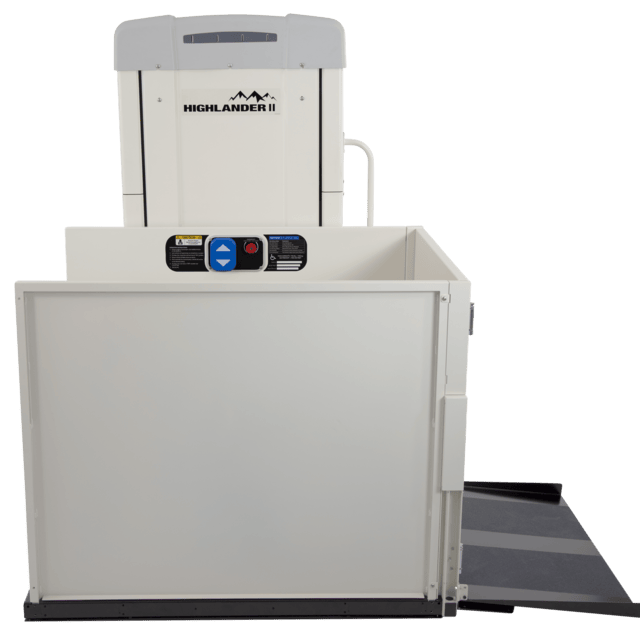

Harmar Highlander II vertical platform wheelchair lift

750 lbs.Heavy-Duty Capacity

Up to 14 ft.Highlander II Travel

5 Platform SizesWidth & Length Choices

Indoor / OutdoorMultiple Applications

Harmar vertical platform lift models.

From a few garage steps to a second-story entrance, Harmar offers AC-powered, battery-powered and enclosed VPL configurations with a common 750-pound capacity.

Up to 14 feet • Commercial & Residential

Highlander II Vertical Lift

A configurable vertical platform lift for decks, porches, garage entries, second-story entries and elevation between floors.

Six lift-height ranges from 53 to 171 inches
Five platform sizes
Guardian diagnostic LEDs and SmartSense monitoring
Steady Drive ACME-screw system
Optional ReadyUPS battery backup

Ask About Highlander II

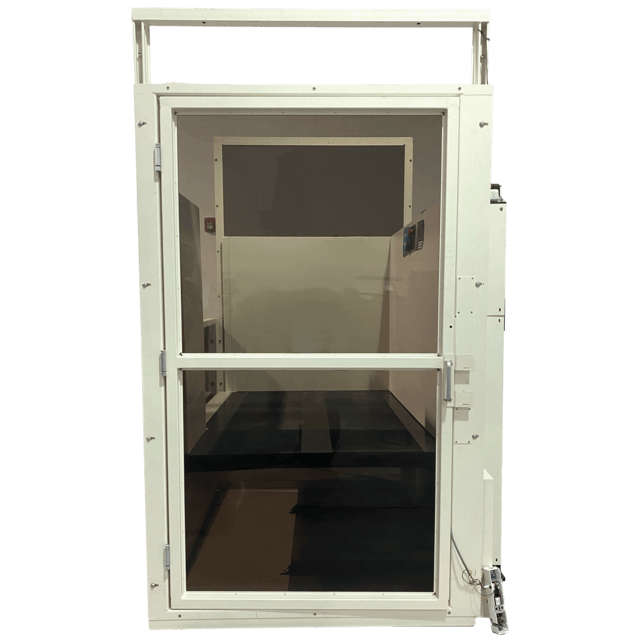

Harmar Highlander II vertical platform lift enclosure

Enclosed • Commercial & Residential

Highlander II Enclosure Kit

A weather-protective enclosure for compatible Highlander II lifts, including applications where commercial codes require enclosure at 60 inches or greater.

Compatible through Highlander II’s 14-foot maximum
Choice of acrylic or steel panels
Acrylic ventilated roof
6-foot-8-inch lower door and upper landing gate
SealKor powder-coated steel frame

Ask About Enclosures

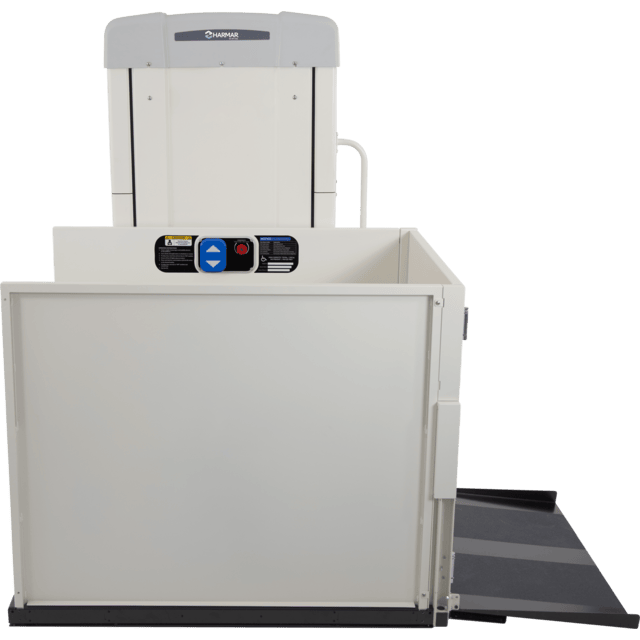

Harmar VPL400-X residential platform lift

Up to 53 inches • Residential

VPL400-X Platform Lift

A simple, sturdy AC-powered choice for shorter-rise access to porches, decks and garage entries.

750-pound lifting capacity
9.5–15 feet-per-minute speed
Five platform sizes
Safety pan, overspeed brake and gate interlocks
Fixed or auto-fold ramp options

Ask About VPL400-X

Harmar VPLX-DC battery powered vertical platform lift

4- & 6-Foot • Battery Powered

VPLX-DC Platform Lift

A 48-volt lift powered by four onboard batteries. A plug-and-play wiring design and integrated disconnect reduce hardwiring and complex electrical preparation.

750-pound lifting capacity
10 feet-per-minute speed
Four 12V 7Ah batteries
Standard GFCI outlet for charging
Battery indicator, lockout and integrated disconnect

Ask About VPLX-DC

Accessibility with a smaller footprint

Why choose a vertical platform lift?

A VPL carries a rider vertically while the rider remains in a wheelchair, powerchair or scooter. It can provide an efficient alternative where a long ramp would consume too much property.

Compact access: ADA-style ramping commonly requires approximately one foot of ramp for each inch of rise, subject to codes and design.
Stay in your device: avoid transferring from a wheelchair or scooter to a separate chair.
Multiple uses: porch, deck, garage, building entrance or between-floor access.
Weather-resistant construction: Seal-Kor powder coat and stainless hardware support appropriate outdoor applications.
Platform choices: multiple lengths and 36- or 42-inch widths accommodate differing site and device needs.
Professional configuration: gates, landings, ramps, controls and enclosures are selected for the site and applicable code.

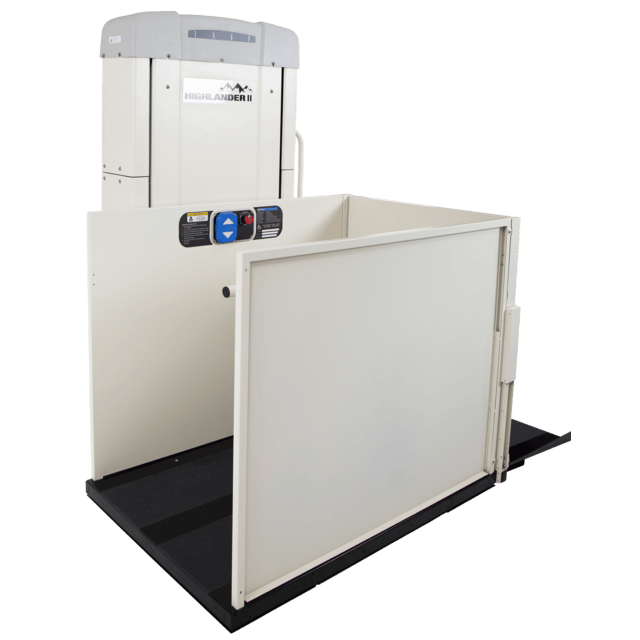

Harmar Highlander II wheelchair platform lift with landing gate

Safety, controls and available options.

Exact equipment depends on model and installation. A qualified professional must evaluate the site, user, landings and applicable codes.

▣

Safety Pan

A safety pan beneath the moving platform helps stop travel if an obstruction is encountered.

Emergency Stop

An accessible platform emergency-stop control provides an immediate way to halt movement.

↧

Overspeed Brake

A mechanical overspeed brake is part of the layered platform-lift safety system.

🔒

Gate Interlocks

Interlocks coordinate gates or doors with lift position to help secure landings and travel.

◉

Big Blue Paddle

A large constant-pressure paddle control is easier to locate and operate than small switches.

⚡

Backup & DC Options

Choose ReadyUPS backup on Highlander II or the four-battery VPLX-DC configuration.

☰

Platform & Landing Gates

Available 36- and 42-inch gates can be configured with compatible interlocks.

↔

Ramp Choices

Fixed and automatic folding ramp options support site-specific entry and exit.

☎

Call/Send Controls

Wired or wireless landing controls can be selected for compatible Highlander II installations.

Harmar VPL specifications comparison.

Review major distinctions, then arrange a site evaluation for a code-compliant final design.

Specification	Highlander II	Enclosed Highlander II	VPL400-X	VPLX-DC
Application	Residential / commercial	Residential / commercial	Residential	Residential
Capacity	750 lbs.	750 lbs.	750 lbs.	750 lbs.
Maximum travel	Up to 171 in. / about 14 ft.	Up to 14 ft.	Up to 53 in.	4- and 6-ft. models
Speed	9.5–15 FPM	9.5–15 FPM	9.5–15 FPM	10 FPM
Drive	ACME screw; 90V 2/3 HP sealed DC gear motor	ACME screw; 90V 2/3 HP sealed DC gear motor	90V 2/3 HP sealed DC gear motor	2/3 HP 48V sealed DC motor
Power	120V AC / 15A	120V AC / 15A	120V AC / 15A	4 × 12V batteries; 120V GFCI charging
Platform sizes	36×48, 36×54, 36×60, 42×54, 42×60 in.	36×60 or 42×60 in.	Five sizes	Five sizes listed
Warranty	3-year parts; 1-year battery	3 years	2-year parts	2-year parts; 6-month batteries
Listing / standard	ETL; ASME A18.1; CSA B44.1/ASME A17.5	ETL; ASME A18.1; CSA B44.1/ASME A17.5	ETL; ASME A18.1; CSA B44.1/ASME A17.5	ETL; ASME A18.1-2020; ASME A17.5-2019

Specifications and options may change. Platform lifts are regulated equipment. Permit, inspection, landing protection, gate/door, enclosure, electrical, drainage, slab and setback requirements vary by jurisdiction and project. Final design must be completed by qualified professionals.

Southern California VPL planning and installation.

A successful platform-lift project begins with a detailed site and code review—not simply choosing a model.

Needs Review

Confirm rider, mobility device, required travel height, entrances, exits and everyday use.

Site Evaluation

Measure landings, slab, clearances, drainage, power, gates, doors and surrounding structure.

Permits & Configuration

Select platform, entry/exit direction, gates, ramp, enclosure and controls for local requirements.

Installation & Service

Professional installation, inspection coordination, user instruction and ongoing maintenance.
